肖特基二极管自身功耗小,效率很高,反向恢复时间极短,所以适宜工作在高频率状态下;目前常见的肖特基最高结温为150℃-175℃(结温越高表示产品抗温特性越好)

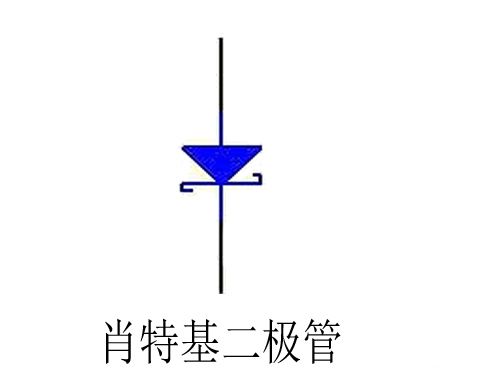

肖特基二极管符号:
肖特基二极管压降:
一,1A肖特基二极管压降:
1N5819,电流1A,压降0.55V,电压40V
SR160,电流1A,压降0.7V,电压60V
SR1100,电流1A,压降0.85V,电压100V
二,2A肖特基二极管压降:
SR240,电流2A,压降0.55V,电压40v
SR260,电流2A,压降0.7V,电压60v
SR280,电流2A,压降0.85V,电压80v
SR2100,电流2A,压降0.85V,电压100v
三,3A肖特基二极管压降:
SR340,电流3A,压降0.55V,电压40v
SR360,电流3A,压降0.7V,电压60v
SR380,电流3A,压降0.85V,电压80v
SR3100,电流3A,压降0.85V,电压100v
四,5A肖特基二极管压降:
SR540,电流5A,压降0.55V,电压40v
SR560,电流5A,压降0.7V,电压60v
SR580,电流5A,压降0.85V,电压80v
SR5100,电流5A,压降0.85V,电压100v
五,8A肖特基二极管压降:
SR840,电流8A,压降0.55V,电压40v
SR860,电流8A,压降0.7V,电压60v
SR880,电流8A,压降0.85V,电压80v
SR8100,电流8A,压降0.85V,电压100v
六,10A肖特基二极管压降:
SR1040,电流10A,压降0.55V,电压40v
SR1060,电流10A,压降0.7V,电压60v
SR1080,电流10A,压降0.85V,电压80v
SR10100,电流10A,压降0.85V,电压100v
七,12A肖特基二极管压降:
12SQ040,电流12A,压降0.55V,电压40v
12SQ045,电流12A,压降0.55V,电压60v
12SQ060,电流12A,压降0.7V,电压80v
12SQ080,电流12A,压降0.8V,电压100v
12SQ100,电流12A,压降0.8V,电压100v
八,15A肖特基二极管压降:
15SQ040,电流15A,压降0.55V,电压40v
15SQ045,电流15A,压降0.55V,电压60v
15SQ060,电流15A,压降0.7V,电压80v
15SQ080,电流15A,压降0.8V,电压100v
15SQ100,电流15A,压降0.8V,电压100v
九,1A肖特基二极管压降:
SS14,电流1A,压降0.55V,电压40V
SS16,电流1A,压降0.7V,电压60V
SS18,电流1A,压降0.85V,电压80V
SS110,电流1A,压降0.85V,电压100V
十,2A肖特基二极管压降:
SS24,电流2A,压降0.55V,电压40V
SS26,电流2A,压降0.7V,电压60V
SS28,电流2A,压降0.85V,电压80V
SS210,电流2A,压降0.85V,电压100V
十一,3A肖特基二极管压降:
SS34,电流3A,压降0.55V,电压40V
SS36,电流3A,压降0.7V,电压60V
SS38,电流3A,压降0.85V,电压80V
SS310,电流3A,压降0.85V,电压100V
十二,5A肖特基二极管压降:
SS54,电流5A,压降0.55V,电压40V
SS56,电流5A,压降0.7V,电压60V
SS58,电流5A,压降0.85V,电压80V
SS510,电流5A,压降0.85V,电压100V
十三,8A肖特基二极管压降:
SS84,电流8A,压降0.55V,电压40V
SS86,电流8A,压降0.7V,电压60V
SS88,电流8A,压降0.85V,电压80V
SS810,电流8A,压降0.85V,电压100V
十四,10A肖特基二极管压降:
SS1040,电流10A,压降0.55V,电压40V
SS1060,电流10A,压降0.7V,电压60V
SS1080,电流10A,压降0.85V,电压80V
SS10100,电流10A,压降0.85V,电压100V
十五,1A肖特基二极管压降:
K14,电流1A,压降0.55V,电压40V
K16,电流1A,压降0.7V,电压60V
K18,电流1A,压降0.85V,电压80V
K110,电流1A,压降0.85V,电压100V
十六,2A肖特基二极管压降:
K24,电流2A,压降0.55V,电压40V
K26,电流2A,压降0.7V,电压60V
K28,电流2A,压降0.85V,电压80V
K210,电流2A,压降0.85V,电压100V
十七,10A肖特基二极管压降:
MBR1040CT,电流10A,压降0.65V,电压40V
MBR1045CT,电流10A,压降0.65V,电压45V
MBR1060CT,电流10A,压降0.72V,电压60V
MBR1080CT,电流10A,压降0.85V,电压80V
MBR10100CT,电流10A,压降0.85V,电压100V
MBR10150CT,电流10A,压降0.92V,电压150V
MBR10200CT,电流10A,压降0.92V,电压200V
十八,20A肖特基二极管压降:
MBR2040CT,电流20A,压降0.65V,电压40V
MBR2045CT,电流20A,压降0.65V,电压45V
MBR2060CT,电流20A,压降0.72V,电压60V
MBR2080CT,电流20A,压降0.85V,电压80V
MBR20100CT,电流20A,压降0.85V,电压100V
MBR20150CT,电流20A,压降0.92V,电压150V
MBR20200CT,电流20A,压降0.92V,电压200V
十九,30A肖特基二极管压降:
MBR3040CT,电流30A,压降0.65V,电压40V
MBR3045CT,电流30A,压降0.65V,电压45V
MBR3060CT,电流30A,压降0.72V,电压60V
MBR3080CT,电流30A,压降0.85V,电压80V
MBR30100CT,电流30A,压降0.85V,电压100V
MBR30150CT,电流30A,压降0.92V,电压150V
MBR30200CT,电流30A,压降0.92V,电压200V
